220V QR Code Machine With MES Interaction Function

YUSH Electronic Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

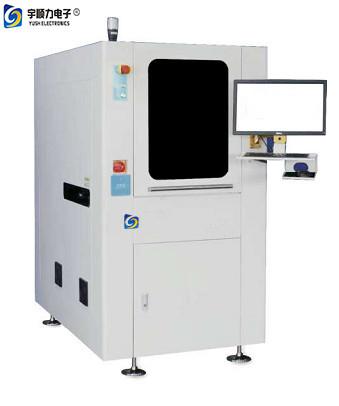

220V QR Code Machine With MES Interaction Function

Brand Name : YUSHUNLI

Model Number : PM-450A

Certification : CE

Place of Origin : China Dongguan

MOQ : 1set

Price : USD1000~10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 80Sets/Month

Delivery Time : 10-15work days

Packaging Details : plywooden case

Machine size : 880*1430*1600mm

Working area : 450*450mm

PCB size : 50*50mm-600*500mm

Printing accuracy : ±0.1mm

Printable QR code : Data Matrix、QR、PDF417

Print height : 3-15mm

Printing angle : 0-360°

Anti-recode function : 365 days automatic recode detection

Machine weight : 800KG

Voltage : 220V 50/60HZ 2KVA

Air pressure : ≥0.4MPa

Contact Now

800KG 450*450mm Automatic QR Code Coding Machine

Introduction

PM series continuous automatic inkjet printer adopts high temperature resistant and environmentally friendly quick-drying ink. The ink dots dries instantly when they adhere to the surface of the product. It can be printed on the surface of PCB, FPC, metal, ceramic, plastic, rubber and other products. Identify information to achieve industrial traceability purposes.

The coding system can interact with production management systems such as IMS, MES, ERP, etc., to realize variable information printing, that is, printing and reading, and return to the management system.

SMT online production reduces manpower input, and it can also be equipped with up and down board machines to achieve offline production.

Features

Can be reprinted after wiping

1. With printing information solvent erasing and then printing

2. After being baked at a high temperature in the oven, the printed information is solidified and cannot be erased.

Does not damage the product

  • The printed ink dots are attached to the surface of the product without damage to the product.
  • Can be printed on the PCB/FPC network cable without quality risk.

Quick-drying ink, green and environmentally friendly

  • The ink is sprayed and dried without baking.
  • High temperature resistance, friction resistance, alcohol resistance, environmental protection
  • No smoke or dust remains on the product during the production process.
  • Ultra-low cost of consumables, only 1/8 of the label.

Industry 4.0, MES system interaction

  • Printing information and real-time download from MES system.
  • After spraying, the information is automatically read, and uploaded to the MES system, and the information is traced back to prevent foolishness.
  • Real-time upload of equipment operating data and remote management.

Easy-to-use coding control system

  • Simple and easy-to-use coding information generation system.
  • Teaching visual programming, easy to use.
  • Printing information detection to ensure no defective products High reliability and stability
  • The equipment frame is welded as a whole, and the gantry is processed to ensure high rigidity, stability and long life.
  • The components are all selected first-line brands.

Parameter Specs:

Model PM-450A PM-750A PM-450B PM-750B
Series Standard version Upgraded version
Machine size 880*1430*1600mm 1200*1450*1600mm 880*1430*1600mm 1200*1450*1600mm
Working area 450*450mm 700*500mm 450*450mm 700*500mm
PCB size 50*50mm-600*500mm 50*50mm-900*500mm 50*50mm-600*500mm 50*50mm-900*500mm
Into the board direction L→R,R→L,L→L,R→R,Manual switch L→R,R→L,L→L,R→R,Automatic switch
Duplex copy function Optional Read the barcode information on the back, copy and print to the front
Printing accuracy ±0.1mm ±0.5mm
MES Onilne Optional MES online function Printing information MES download, read and upload to MES
Types of printable text 5*7,7*6,9*6,11*6,16*12,24*16,Custom text and pictures
Can print Bar code Code 128,Code128A,Code128B,2/5,39
Printable QR code Data Matrix,QR,PDF417
The smallest QR code can be printed 2*2mm
Printing color Choose one of black, white and yellow

Printing resolution 80DPI, 115DPI, 150DPI three options
Productivity One second plus six seconds for each pen
Print height 3-15mm
Double-sided engraving Optional built-in flip function to achieve double-sided printing
Applicable Products 0.1-8mm thickness, tolerable warpage: ±1mm, upper space: ≤5mm, weight: ≤3Kg
Printing angle 0-360°
Track plate frame adjustment Automatic adjustment
Anti-recode function 365 days automatic recode detection
Visual teaching programming Through visual guidance, teach to set the printing position
Barcode checking function After printing, check the position of the barcode through CCD and read it
Mark Visual correction Recognize the product Mark by CCD, compensate and correct the printing position to ensure the accuracy of the printing position
Special-shaped Mark point visual function Support special-shaped Mark recognition, white background recognition, automatic expansion and contraction compensation functions
Log query function The system comes with a database, supports printing log query
Printing information formation function The system supports its own printing information generation, and supports customized date, serial code, and shift format
SMEMA online features Supports SMEMA communication interface for online applications
Machine weight 800KG
Voltage 220V 50/60HZ 2KVA
Air pressure 0.4MPa

Applications

220V QR Code Machine With MES Interaction Function
